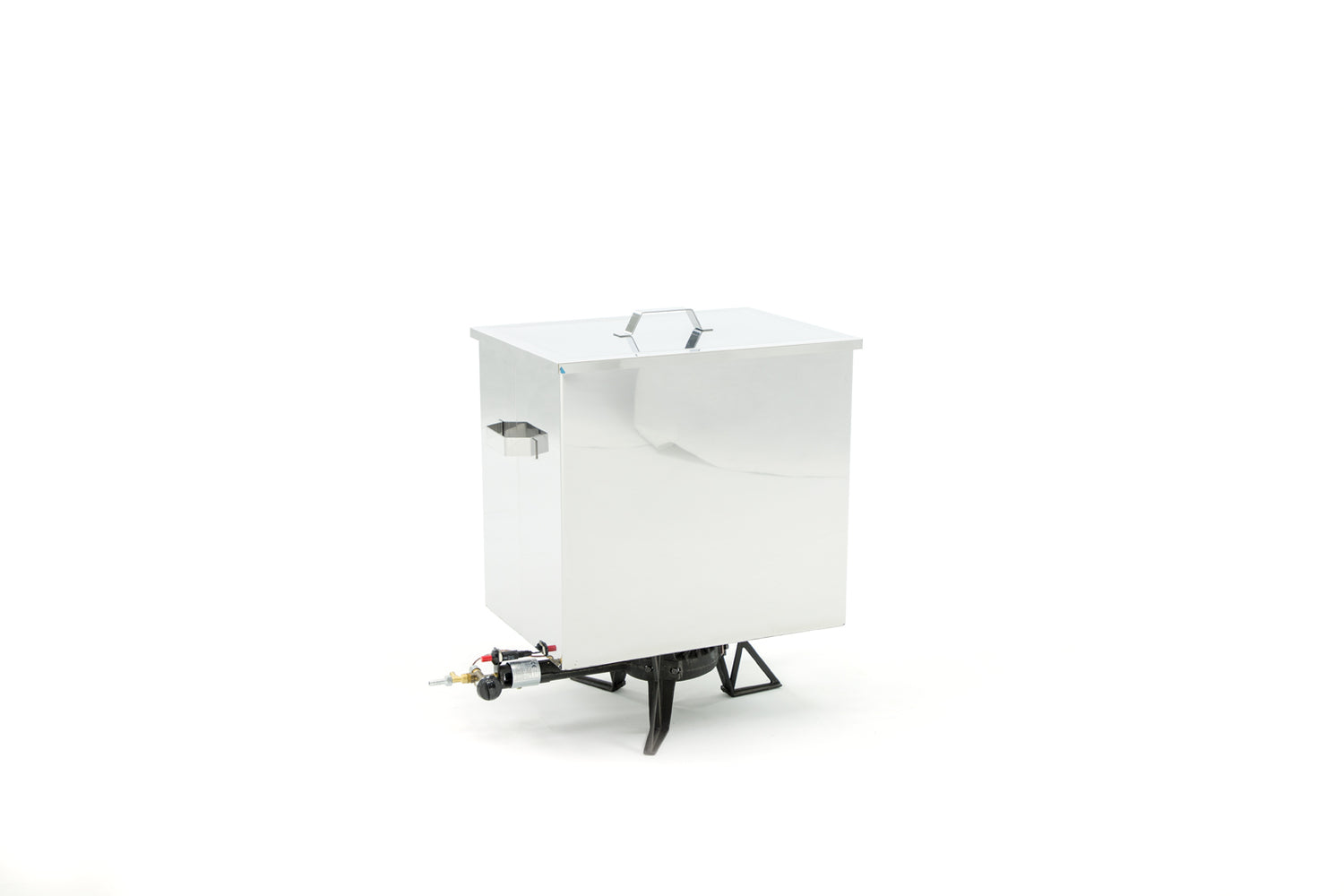

Stainless Steel Wax Melter with Burner

Regular price
Regular price
Sale price
Tax included.

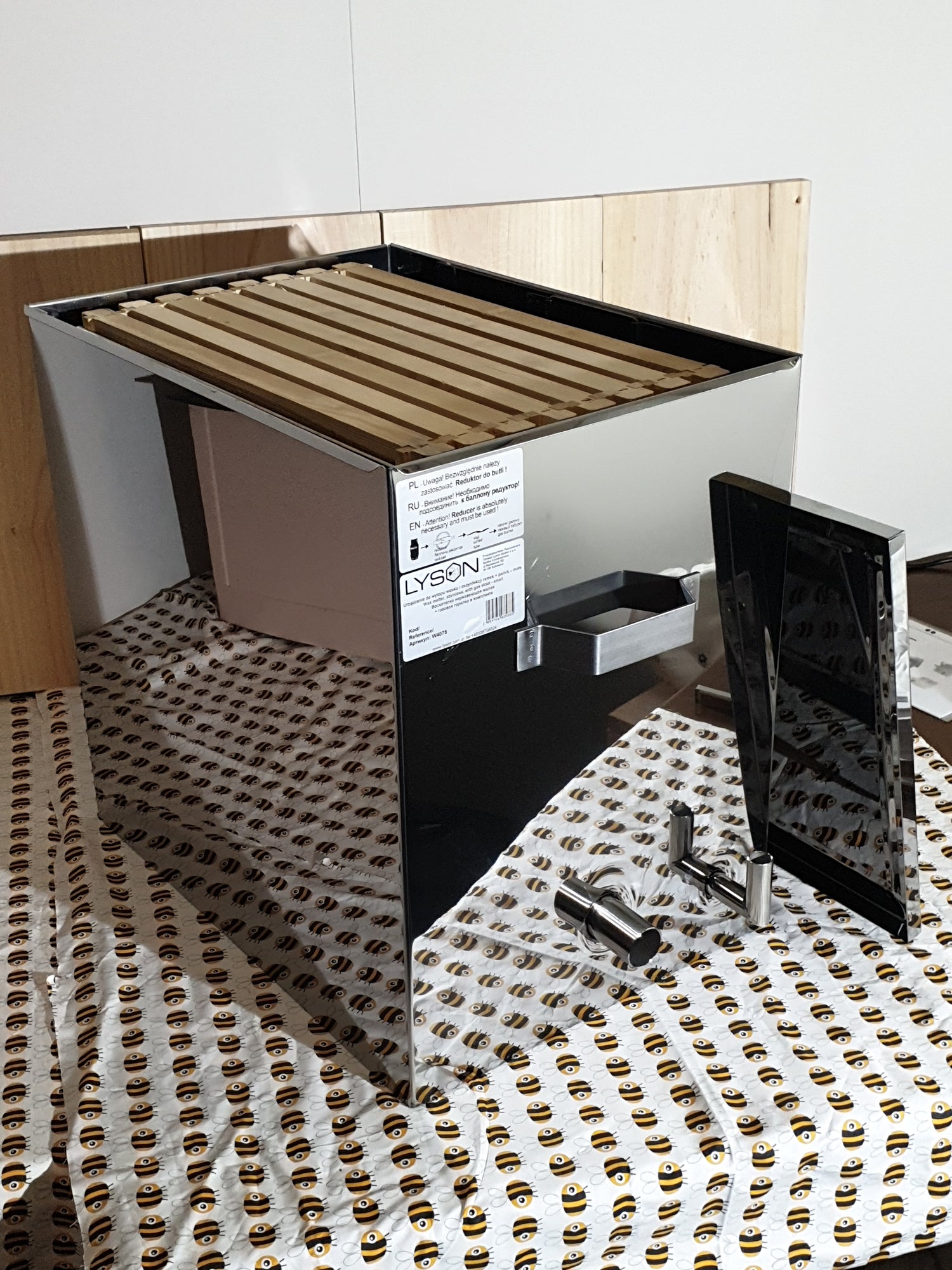

This device is intended for recovering the wax from frames and cappings using a steam bath. It consists of an external tank, where the water is and a basket to place the frames or cappings. The gas stool provides the direct heat to turn the water into steam.

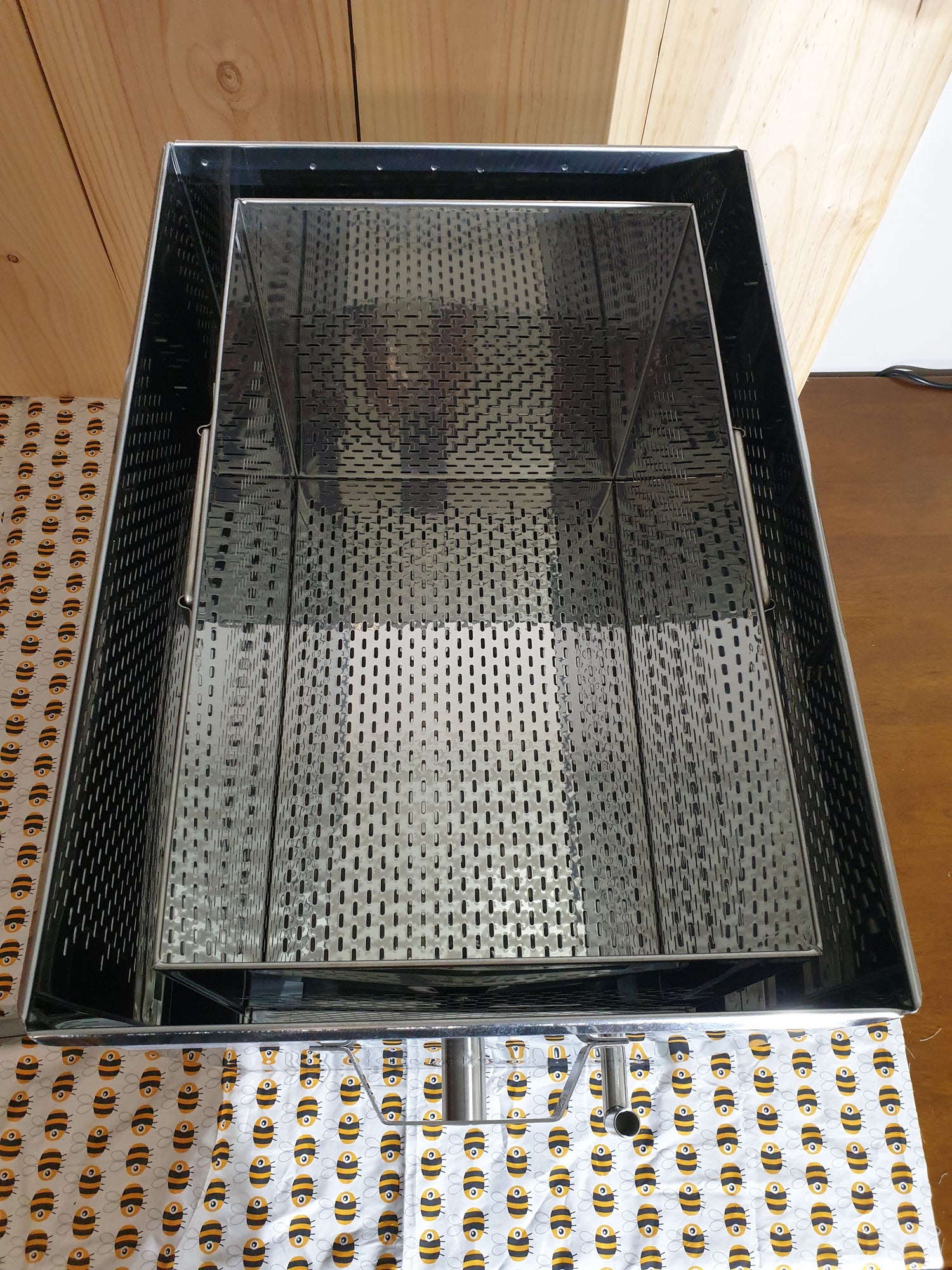

The basket fits 8 langstroth frames comfortably.

It presents a highly effective way to clean back frames to re-use them.

Total height : 495 mm

Tank dimensions :

  • Length – 515 mm
  • Width – 360 mm
  • Height – 495 mm

Frame basket dimensions :

  • Length – 445 mm
  • Width – 290 mm
  • Height – 330 mm
  • Diameter of the drain – 1 ”

Description of operation

  1. Pour the tank with water to the level of the drain pipe.
  2. Fill the basket with frames or cappings.
  3. Replace the lid on the device.
  4. Burner placed under the device so that the flame can heat up the entire bottom surface of the device.
  5. Wait until the formation of steam for wax to melt.
  6. After melting one batch of frames/cappings, check the water level and top-up if required.
  7. Refill basket of frames or cappings.
  8. Steps 6 and 7 are repeated until the end of melting.
  9. After the process is complete turn off the burner and gas cylinder.
  10. Clean the basket and prepare it for the next use.
